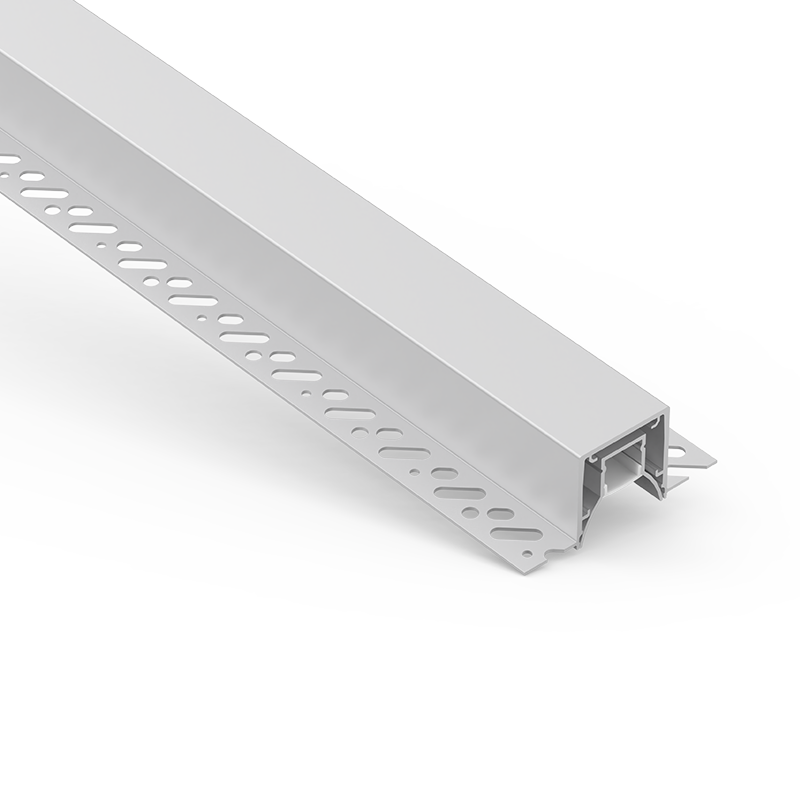

TR35N-S1 35mm Trimless 75x34mm
- LW-TR35N-S1
- W75mm*H34mm
- 6063-T5 Silver anodized Aluminium
- Silver/Black/White/Custom
- PMMA: Opal, Milky, Frost, Clear, Black
- Most LEDWIDE strips up to 13mm wide & 14.4W/m
- 2m, 2.5m in stock, max 6m upon request

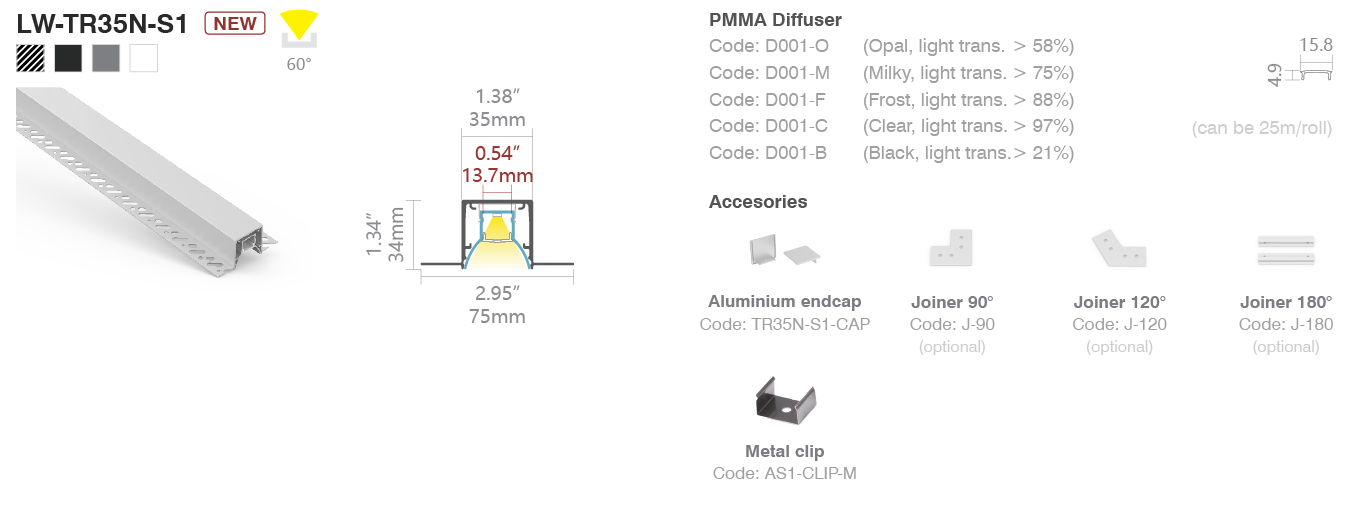

35mm Trimless led profile for gypsum ceiling
Ledwide unique trimless system, using existing install components just change the basic part.
| TR35N-S1 Trimless Led Aluminum Profile Specification: | ||||
| Item No. | LW-TR35N-S1 | |||
| Beam angle | 60 degrees | |||
| Max strip width | 13mm | |||
| Power consumption | ＜14.4W/m | |||
| Length | 2m, 2.5m in stock, max 6m upon request | |||
| Aluminum profile | Temper: T5 Grade: 6063 series | |||
| Diffuser material | PMMA | |||
| Diffuser color | Opal/Milky/Frosted/Clear/Black | |||
| Accessories | Aluminum endcap without hole Joiner | |||
| Surface treatment | Silver anodized | |||
| Customized Color | Color Anodized/Powder Coated/Spray Painting | |||
| Aluminum Profile Stock or not | NOT | |||
| MOQ of Aluminum profile | 700M for pforile or Extra machine boot fee $100 when not meet MOQ 1500M for insert pforile or Extra machine boot fee $100 when not meet MOQ | |||
| Diffuser Stock or not | Opal and Frost are in stock, other are not | |||
| MOQ of diffuser | 1000M per color or Extra machine boot fee $100 when not meet MOQ | |||
| Warranty | 5 years | |||
| Certification | CE, RoHs, SGS | |||
TR35N-S1 Trimless Led Aluminum Profile Features:
# Trimless product
# The body shape of the following profiles in connection with an extra equipment allow us to make the very fine finish of our lamp with the gypsum ceiling
# The profile can be considered as the main led lighting for TRIMLESS
# The shape and weight of the aluminum LED profile play a key role in the heat dissipation of the LEDs
Applications:
# For offices, warehouses, parking garages, homes, hotels, restaurants and bars
# Aluminum channel for restaurant LED lighting
# Hospitality LED lighting
