CX100 100mm Bending Curve led Aluminium Profile
- LW-CX100

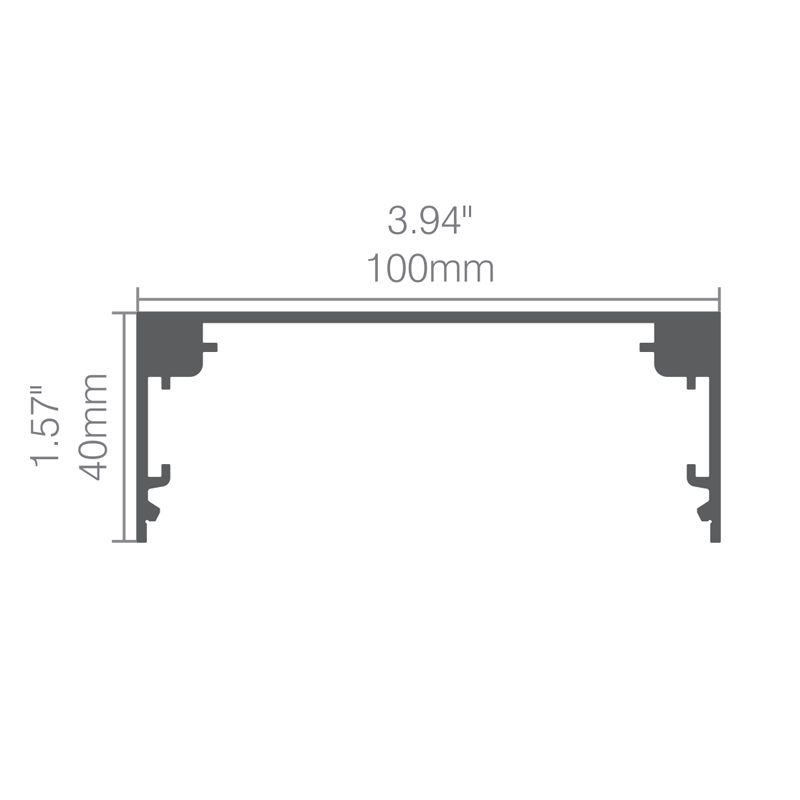

- W100*H40mm
- Curved extruded aluminium
- PMMA NEW OPAL
- S type flexible or Led modules
- 2700K / 3000K / 4000K / 6000K / RGB / RGBW
- 5 Years
- IP20

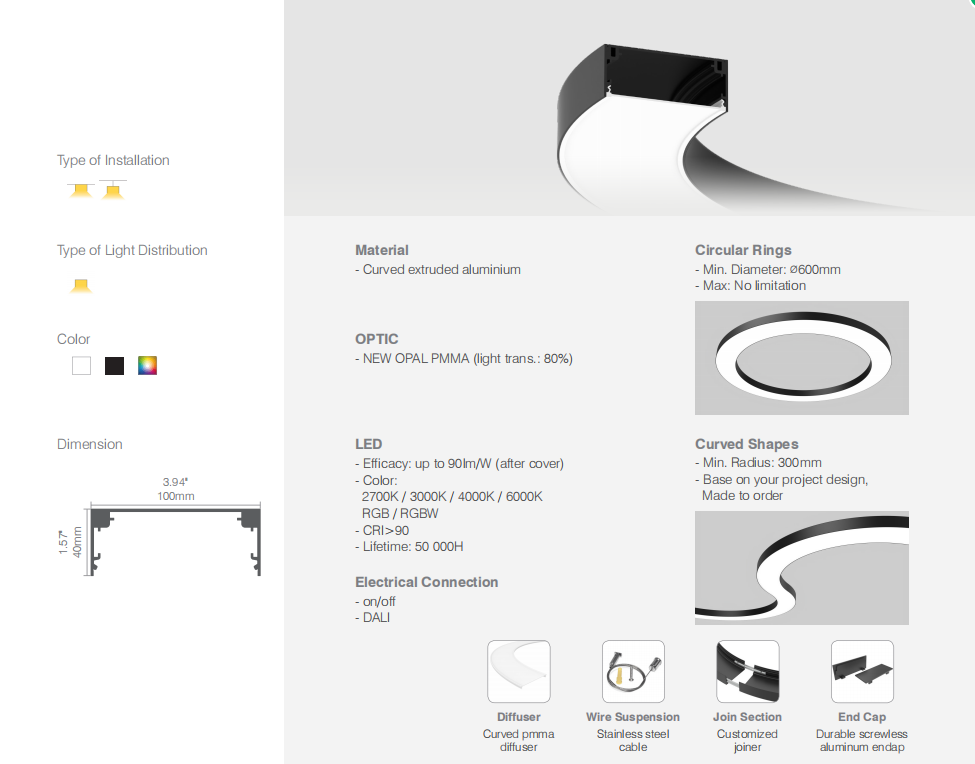

The surface / suspended LED profile system with a width of 100 mm offers curves and straight elements that are seamlessly connected. Scores with its sophisticated and powerful LED technology and with diffusers for a wide variety of lighting tasks. End caps to be ordered separately.
CX100 LED Aluminum Profile Specification | ||||
| Item No. | LW-CX100 | |||
| Dimension | W100*H40mm | |||
| Weight | 1.6kg/m | |||
| Aluminum profile | Temper: T5 Grade: 6063 series | |||
| Accessories | Connector / Suspension kit / Power supply / Ceiling Rose | |||
| LED Source | S type led strip 4.8w/m or 14.4w/m; Led module 70mm, 140mm, 280mm, 560mm | |||
| Light efficacy | up to 90lm/W (after cover) | |||
| Customized Color | Color Anodized/Powder Coated/Spray Painting | |||
| Installation | Surface / Suspended | |||
| Certification | CE, RoHs | |||
The Surface & Suspended collection consists of a series of aluminum rings or custom curved shapes with features that differ both in the size and in the type of lighting distribution, and way of installation. The variety of combinations allows its application in all kinds of environments, from residential to large public spaces. Whatever it’s custom rings or custom shapes, we can make it into production without MOQ.
Applications
# Suitable for fitness room, office, display, shopping mall, indoor, warehouse.
