C35 35mm wide Curved profiles 35x37.5mm
  • LW-C35
  • W35mm *H37.5mm
  • Non anodized (mill finish)
  • White/Black/RAL color
  • PMMA new opal
  • S type flexible or Led modules
  • CV 24V or Constant current
  • 3000K, 4000K, RGB
  • IP20

Smallest radius is 400mm, can be both surface mounted and suspended.

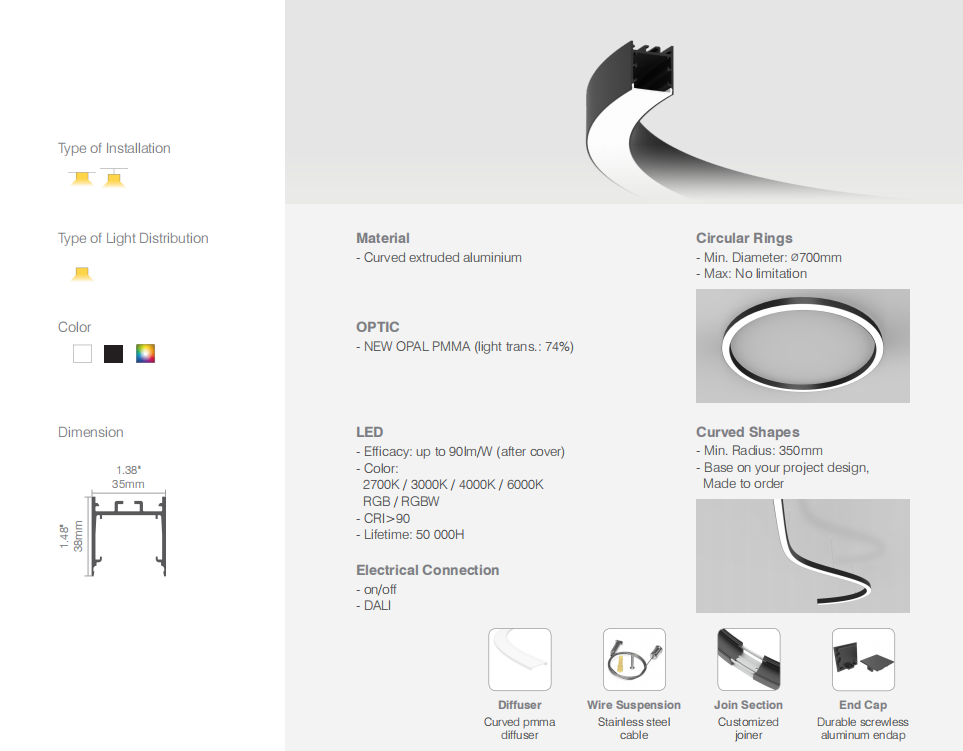

C35 Led Aluminum Profile Specification:
Item No.LW-C35
Max strip width31.4mm
Power consumption<38.4W/m
Weight0.9kg/m
Aluminum profileTemper: T5
Grade: 6063 series
AccessoriesConnector / Suspension kit / Power supply / Ceiling Rose
LED Source

S type led strip 4.8w/m or 14.4w/m;

Led module 70mm, 140mm, 280mm, 560mm

Light efficacy90~130lm/W (after cover on)
Surface treatment

Non anodized (mill finish) or Black, white

Customized ColorColor Anodized/Powder Coated/Spray Painting
InstallationSurface / Suspended
CertificationCE, RoHs



C35 Led Aluminum Profile Features:

PMMA new opal diffuser

- It is PMMA not silicone, light transmission is 74%

Click on not slide into channel, fast install and save labor cost

- Whatever the radius or shape it is, we can make diffuser in one piece longer to 6m, so less splicing times

and connection gaps(less light leak)


No MOQ

- Whatever any size, we can do one piece for you.


No Mold cost

- We customize any size for you if within our min. radius, no extra mold cost.


Any shape

- There is no standard. Whether it is round or oval or other shapes, we can customize as per your drawing,

but please no smaller than our min. radius. For example, C35 our min. radius is 300mm, when you ask 301,

310,325,480,579,6000mm.... we can make one piece for you. If you ask radius <300mm, we may consider a

new tooling.


Premium quality

- Higher quality on LED, ALU surface finish, joiners, packages to make sure you receive the amazing product.




Applications:

Suitable for fitness room, office, display, shopping mall, indoor, warehouse.
