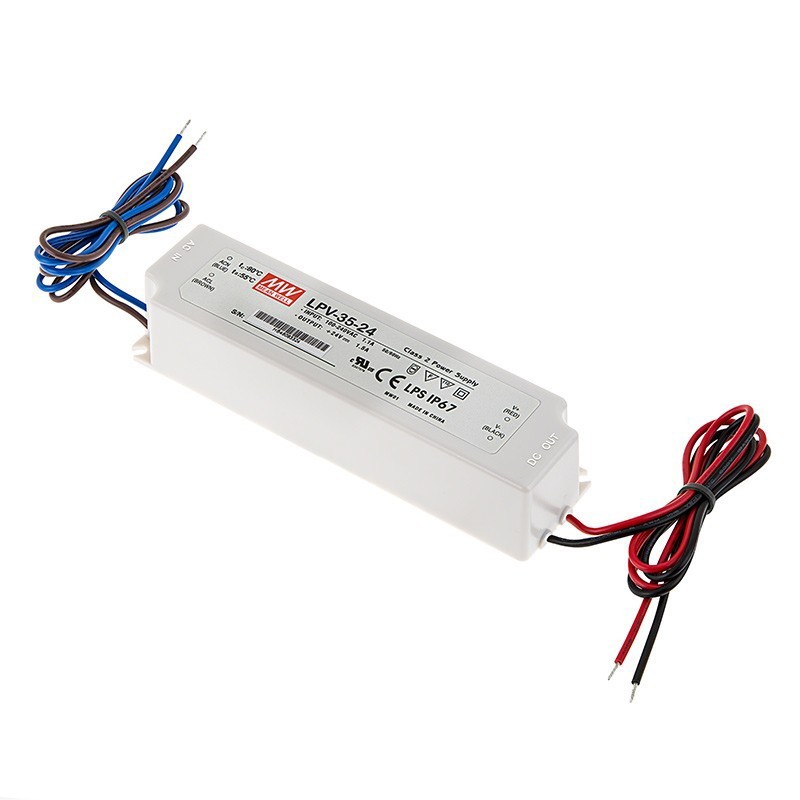

Mean Well LPV Series C.V LED Power Supply 20~150W
Features：
INPUT POWER: 90 ~ 264Vac | CASING: Fully encapsulated rectangular design, IP67 Rated |
OUTPUT VOLTAGE: 5-48Vdc | WATTS: 20W Up to 100W |
CONNECTIONS: UL Rated 14-18 AWG Wire | Low Cost, High Reliability |
WARRANTY: 2-Years | SAFETY: Class 2 Power Unit (100 Watt excluded), Short-Circuit, Over-Load, Over-Temp. & Over-Voltage |
Waterproof Design! | APPLICATIONS: LED-based decorative, architectural lighting, stage/theater lighting, LED electronic displays |
Description：
The Mean Well LPV power supply series is a fantastic AC to DC converter for delivering constant voltage in wet and dusty environments. This 20-100W LED power supply operates off line voltage (90-264VAC) and delivers constant voltages from 5-48VDC depending on your selection.
The 20 to 60 Watt models qualify as Class 2 power units is offered in a slim, butterstick design with UL rated 14-18AWG wire connections. The fully isolated, IP67 rated case allows for extensive use outdoors without worrying about moisture or dust harming the system. The Mean Well LPV is UL, CUL and CE certified.
This power supply is one of the most popular 12V power supplies for LED strip applications either outdoors or in damp locations.
Technical Documentation：
Specifications
Model | Input | Output | Dimming | Dimensions | |||||
Range | Freq. | Eff. | Voltage | Current Range | Power | R&N | |||
LPV-20-12 | 90~264VAC | 47~63Hz | 81% | 12VDC | 0 ~ 1.67A | 20W | 120mV | no | 118(L) x 35(W) x 26(H) |
LPV-20-24 | 90~264VAC | 47~63Hz | 83% | 24VDC | 0 ~ 0.84A | 20W | 150mV | no | 118(L) x 35(W) x 26(H) |
LPV-35-12 | 90~264VAC | 47~63Hz | 84% | 12VDC | 0 ~ 3A | 36W | 120mV | no | 148(L) x 40(W) x 30(H) |
LPV-35-24 | 90~264VAC | 47~63Hz | 85% | 24VDC | 0 ~ 1.5A | 36W | 150mV | no | 148(L) x 40(W) x 30(H) |
LPV-60-12 | 90~264VAC | 47~63Hz | 83% | 12VDC | 0 ~ 5A | 60W | 120mV | no | 162.5(L) x 42.5(W) x 32(H) |
LPV-60-24 | 90~264VAC | 47~63Hz | 86% | 24VDC | 0 ~ 2.5A | 60W | 150mV | no | 162.5(L) x 42.5(W) x 32(H) |
LPV-100-12 | 90~264VAC | 47~63Hz | 85% | 12VDC | 0 ~ 8.5A | 102W | 120mV | no | 190(L) x 52(W) x 37(H) |
LPV-100-24 | 90~264VAC | 47~63Hz | 88% | 24VDC | 0 ~ 4.2A | 100.8W | 150mV | no | 190(L) x 52(W) x 37(H) |
Misc. Characteristics
| Characteristics | LPV Series |
| VOLTAGE TOLERANCE | ±5.0% - 8.0% |
| LEAKAGE CURRENT | <0.25mA / 240VAC |
| STORAGE TEMP., HUMIDITY | -40 ~ +80°C, 10 ~ 95% RH |
| TEMP. COEFFICIENT | ±0.3%/°C (0~50°C) |
| VIBRATION | 10~500Hz, 2G 10min./1cycle, period for 60min. each along X,Y,Z axes |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RH |
