CX80 80mm Bendable led Curve Profile

  • CX80 80mm Bendable led Curve Profile
  • CX80 80mm Bendable led Curve Profile
  • CX80 80mm Bendable led Curve Profile
  • CX80 80mm Bendable led Curve Profile
CX80 80mm Bendable led Curve Profile
  • LW-CX80
  • W80*H40mm
  • Curved extruded aluminium
  • PMMA NEW OPAL
  • S type flexible or Led modules
  • 2700K / 3000K / 4000K / 6000K / RGB / RGBW
  • 5 Years
  • IP20

A dynamically flowing line of light. CX80 surface / suspended profile system draws elegant, curvy lines on ceilings and walls that provide powerful and uniform lighting. Different curve elements and lengths in any customized sizes offer a lot of creative scope.

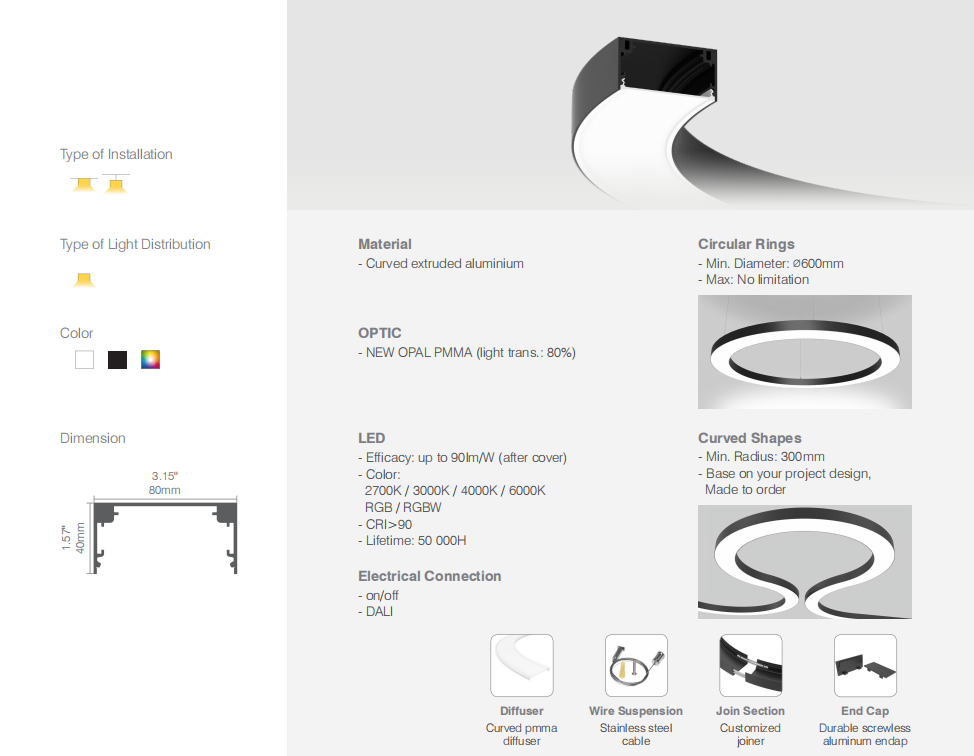

CX80 Led Aluminum Profile Specification:
Item No.LW-CX80
DimensionW80*H40mm
Weight1.28kg/m
Aluminum profileTemper: T5
Grade: 6063 series
AccessoriesConnector / Suspension kit / Power supply / Ceiling Rose
LED Source

S type led strip 4.8w/m or 14.4w/m;

Led module 70mm, 140mm, 280mm, 560mm

Light efficacy90lm/W (after cover on)
Customized ColorBlack / White / RAL customized color
InstallationSurface / Suspended
CertificationCE, RoHs



The Surface & Suspended collection consists of a series of aluminum rings or custom curved shapes with features that differ both in the size and in the type of lighting distribution, and way of installation. The variety of combinations allows its application in all kinds of environments, from residential to large public spaces. Whatever it’s custom rings or custom shapes, we can make it into production without MOQ.


Curved aluminium profile




Applications:

# Suitable for fitness room, office, display, shopping mall, indoor, warehouse.



Bendable curved profile


Curved extrusion profile


Curved aluminium profile
